Lincoln Electric

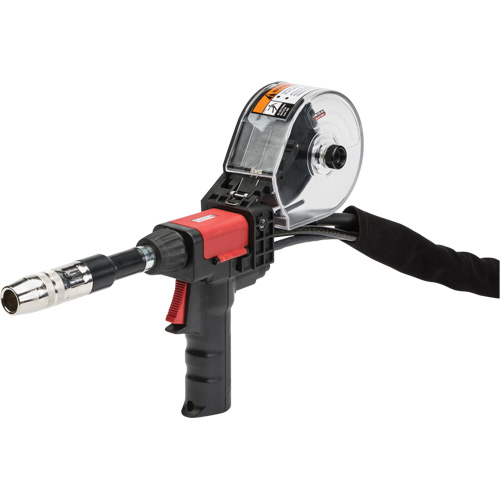

Magnum® Pro 250LX Spool Gun, Lincoln, 280 Amperage Rating

Model: TTV490

Mfr. No.: K3570-2

  • Magnum® Pro 250LX Spool Gun, Lincoln, 280 Amperage Rating NTL Industrial

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$6,412.00 / Each

0 In Stock

Type

Lincoln

Feeder Plug

Lincoln Power MIG

Amperage Rating

280

Duty Cycle At Rated Amperage

60%

Cable Length

25'

Wire Diameter

0.03 - 3/64" (0.8 - 1.2 mm) Aluminum/0.025 - 0.035" (0.6 - 0.9 mm) Steel

Weight

13.5 lbs. (6.12 kg)

  • Utilizes premium Magnum Pro expendables for extended contact tip life, increasing the amount of arc-on time
  • Plugs directly into the Power MIG 256 and Power MIG 260 without the need for an additional adapter
  • Adjust wire speed remotely at the gun with fine resolution so there is no need to travel back to the power source
  • Large thumbscrew makes fine adjustment of drive roll pressure effortless
  • Set screw allows for coarser adjustment if needed for steel
  • Includes: Thread-on aluminum 550A diffuser, 5/8" aluminum recessed gas nozzle assembly, 3/64" aluminum tapered contact tip, .030/.035 - 3/64" aluminum drive roll, 180° barrel liner, 550A insulator
