Topdon

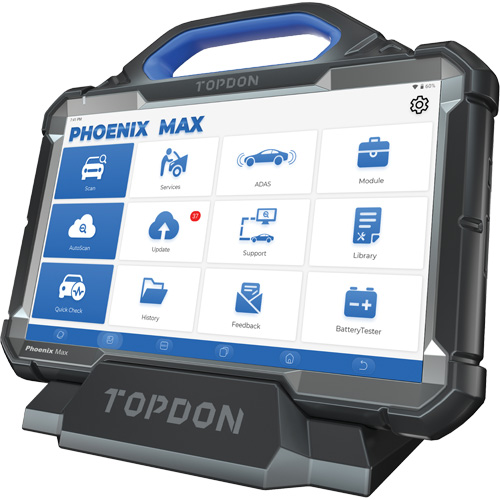

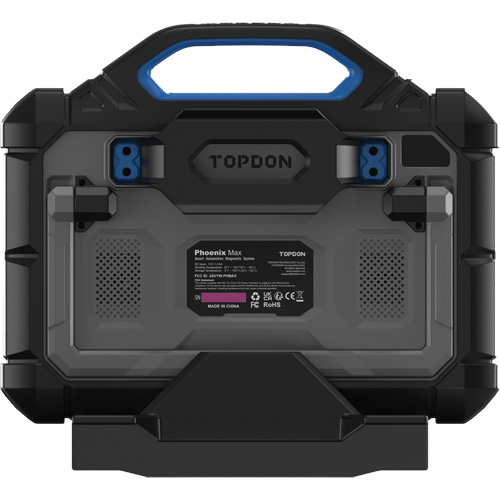

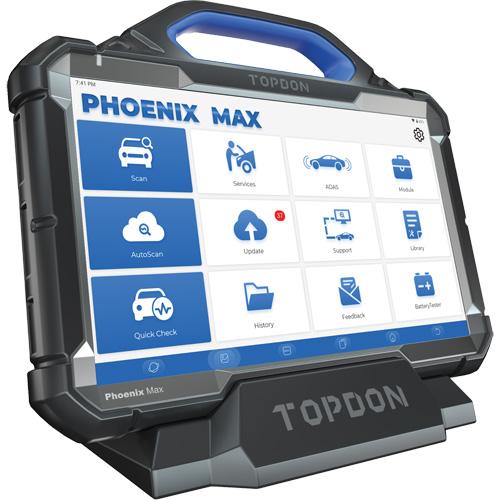

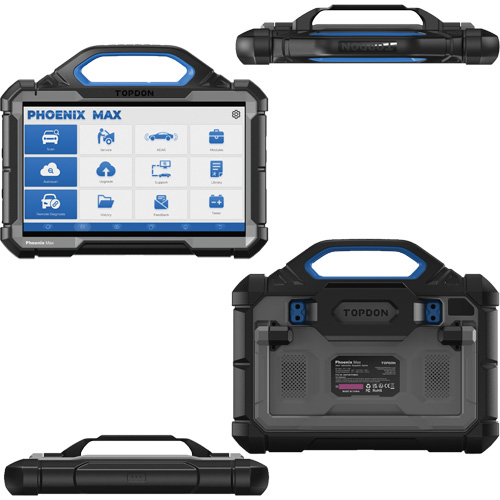

Phoenix Max Basic 13.3" OE-Level Scan Tool, Docking Station, & Cloud-Based Programming

Model: FLV470

Mfr. No.: PXMAXBASIC

  • Phoenix Max Basic 13.3" OE-Level Scan Tool, Docking Station, & Cloud-Based Programming NTL Industrial

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$4,999.00 / Each

0 In Stock

Includes

  • Phoenix Max
  • Dock Stating/Charging Base

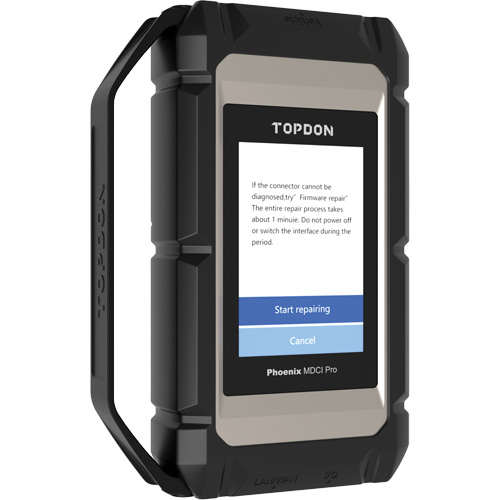

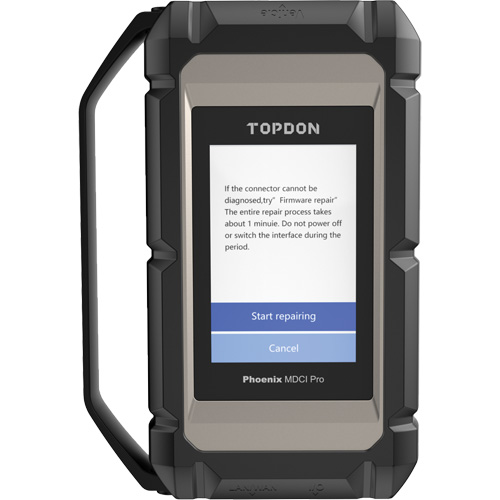

  • Phoenix MDCI PRO
  • MDCI PRO CAB Male to Diagnostic Cable
  • Clipper Cable (LCDSS)
  • Fuse (AC250V/5A, φ5x20mm) x 4
  • MDCI PRO CAB Type A to B Cable
  • Cigarette Lighter Cable
  • Fuse (AC250V/5A, φ6x30mm) x 2
  • BZ-38 (BENZ)
  • TA-17 (TOYOTA)
  • B-20 (BMW)
  • HA-3 (HONDA)
  • OBD I Adaptor
  • Charging Cable
  • TA-22 (TOYOTA)
  • G/V-12 (GM/VAG)
  • CR-6 (CHRYSLER)
  • NN-14+16 (NISSAN)
  • M/H-12+16 (MITUBISHI/HYUNDAI)
  • Adaptor
  • AC Cable (US)
  • Mini-HDMI to HDMI
  • 3-in-1 Charger (Matched with U.S., U.K. and European plugs)
  • FT-3 (FIAT)
  • AC Cable (EU)
  • AC Cable (UK)
  • Type A USB to Type C
  • Ethernet Cable

Manufacturer's Warranty

  • 1 Year

Dimensions

8.66" W x 14.3" L x 3.23" H

Weight

6.44 lbs.

Country Of Origin

China

  • Large 13.3" 1920×1200 display for easier viewing and faster workflow
  • Optional heavy‑duty (HD) software available to expand coverage
  • Supports cloud‑based programming and coding for modern vehicles

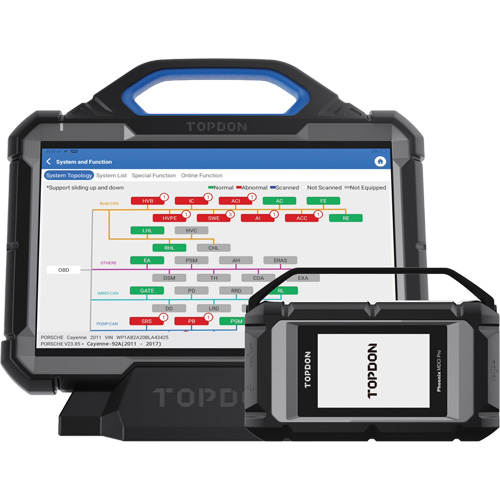

  • Includes the Phoenix MDCI Pro advanced VCI
  • MDCI Pro supports J2534, DoIP, CAN FD, D‑PDU, and RP1210 protocols
  • OE‑level coverage for newer and more complex vehicle platforms
  • Eliminates the need to outsource ECU programming or diagnostics

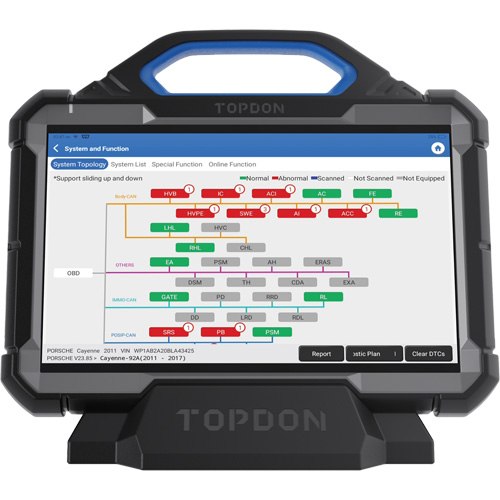

  • Features Topology Mapping to visualize all systems and their status in a single view
  • Performs full‑system diagnostics on over 200 vehicle makes
  • Covers systems including engine, transmission, ABS, airbags, TPMS, ESP, steering, HVAC, and more
  • Offers 41 maintenance service functions for mainstream vehicles
  • Provides 5 core diagnostic functions: ECU info, read DTCs, clear DTCs, data stream, active tests
  • AutoVIN automatically identifies vehicle information for faster service
  • FCA Secure Gateway (SGW) support for authorized access on FCA vehicles
  • Data stream recording for playback and deeper diagnostic analysis
  • Compatible with Phoenix ADAS, BTMobile ProS, T‑Ninja Box, and Phoenix Scope
  • Powerful hardware: 8GB RAM, 256GB storage, Android 9 for smooth performance
  • Long‑lasting 18,600mAh battery with included docking station for all‑day uptime
